Feed Table
Details
- Unscrambling Rotary Feed Tables are available in two sizes 36 inch and 47" inch diameters.
- Feed Tables are manufactured with 1/8” thick 304 stainless steel top plate with, 1/2 inch aluminum support plate.
- Main structure manufactured in 1.5 inch stainless steel square tube.
- Includes stainless steel covers on 4 sides.
- Powered by DC gear motor.
- Variable speed controller.
- Capable of up to 150 containers per minute.
inline Overflow filler
Details
Typical application: Overflow fillers are used to fill a wide range of products with viscosity ranging from water thin to medium viscosity into most containers. These fillers provide the same cosmetic fill level, Making them ideal for filling transparent containers that must have a consistent fill level. Overflow fillers are the machine of choice in handling very foamy products at higher speeds.
Typical Products Filled:
- Shampoo
- Conditioner
- Spirits
- Wine
- Sauces
- Cleanser
- Oil
- Water
- Foamy products
- Liquids with particles not exceeding 1/16 inch
- Pharmaceuticals
- Cosmetics
Corrosive Chemical Filler
Details
Ideal for filling corrosive chemicals like Bleach, Acids and caustics.
- Manufactured out of UHMW, fiberglass, and other non-corrosive materials.
- Manufactured to withstand the harsh hazardous conditions in these types of facilities.
- Can be supplied with spill containment safety enclosures.
Inline Capper
Details
Automatic Inline Bottle Capping Machine
- Up to 80-100 caps a minute.
- Dual side gripper belts.
- 3 sets of cap torque wheels.
- 10ft long x 4 '' wide conveyor belt
- Heavy duty frame mounted on caster.
- Adjustable leveling pads.
- Adjustable speed controllers.
- Mechanical torque adjuster.
- Automatic cap elevator and supplier.
- 220v single phase 30 amp
- Available in other configurations
Conveyor
Stainless Steel Conveyor
Conveyors can be an essential part of tying your processes together which leads to higher efficiency, maintaining an even and contiuous flow of product.

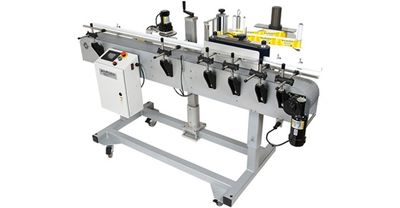

Container Labeling
Benefits
The ideal type of automatic labeler for rectangular and multi panel bottles often used in the Household chemical industries are, Dual head Labelers with top hold down.
- Duel head labelers will provide accurate placement of multiple panel bottles.
- Can be sold with several types of Lot & Expiration coders like inkjet printer & hot stamp embossing.
- Can also be provided with high speed vision inspection and reject stations.
Accumulation Table
Benefits
- Accumulation Tables are a cost effective way to minimize labor cost.
- Rotary Accumulation Tables are available in two sizes 36 inch and 47" inch diameters.
- Accumulation Tables are manufactured with 1/8” thick 304 stainless steel top plate with, 1/2 inch aluminum support plate.
- Main structure manufactured in 1.5 inch stainless steel square tube.
- Includes stainless steel covers on 4 sides.
- Powered by DC gear motor.
- Variable speed controller.
